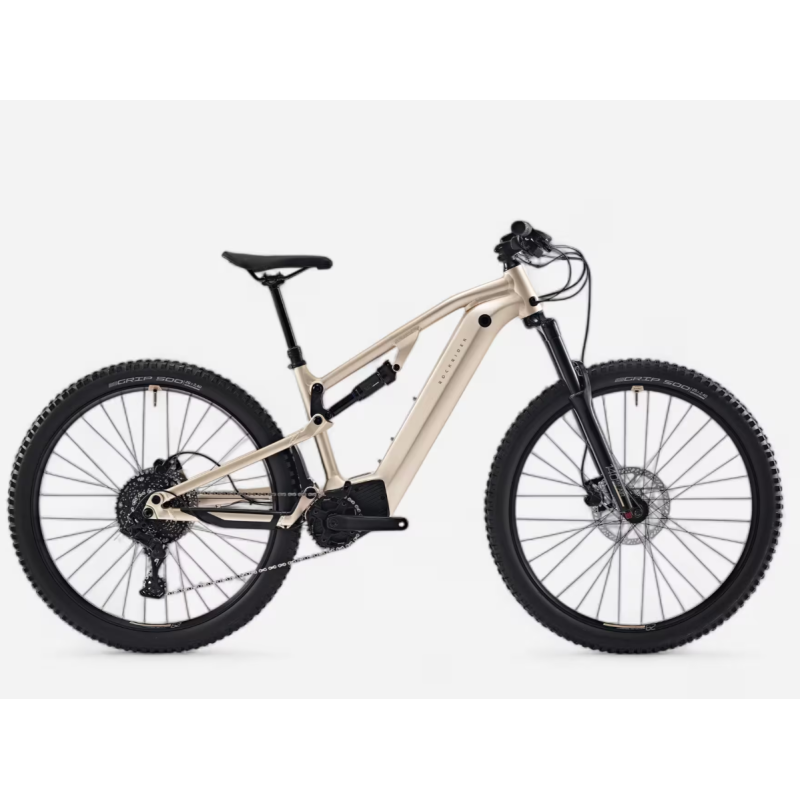

Rock Electric mountain bike 29" E-EXPL 520S 500 Wh

Technical information

Overall description

Weight: 24.4 kg (in size M without pedals).

Center motor: Brose T alu 70 Nm. Battery: 500 Wh.

Frame material: aluminum. Wheel type: full suspension. Wheel size: 29". Fork and shock travel: 140 mm / 140 mm.

Gears: 1×10. Brakes: hydraulic disc. Seatpost: telescopic. Frame, handlebar and stem warranty: lifetime warranty.

Motor

Brose Drive T motor, aluminum, center position, 70 Nm torque, torque sensor, max. assistance: 320%.

Max. power: 460 W. When reaching a speed higher than 25 km/h, the motor assistance is switched off in accordance with European regulations.

Battery

Battery fully integrated into the frame with side outlet for easy handling. Capacity: 500 Wh. Thanks to intelligent management (BMS), Decathlon lithium-ion batteries have a long life (more than 500 complete charging cycles). Compatible with 360 Wh additional battery, sold separately (up to an additional 50 km at low climb).

Display

Ergo 900. TFT color display.

5 assistance modes: 1, 2, 3, 4, walking mode with assistance when pushing the bike.

Bluetooth connection.

The control is located on the left side and tilted downwards for better ergonomics when changing assistance modes and for maximum protection in the event of a fall and overturning of the bike.

Frame

6061 aluminum suspension frame. Single pivot with rocker. Shock absorber travel max. 140 mm

Fully integrated battery with side insertion.

Tapered head tube. Seat tube diameter 31.6 mm.

Possibility of mounting 1 bottle cage.
